README.md

Common Operations

Register new user

In order to use OpenCAPIF we must add a new user. This new user can onboard/register any Invokers or Providers.

That new user must be created by administrator of Register Service and with the credentials shared by administrator, the new user can get the access_token by requesting it to Register service.

The steps to register a new user at Register Service are:

Admin create User

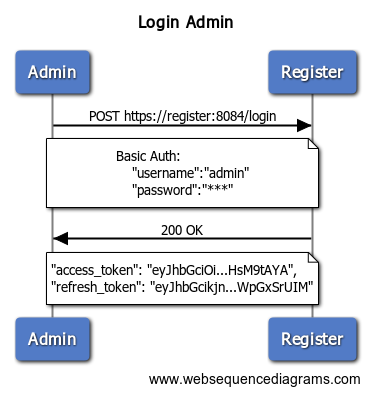

1. Login as Admin to get access_token:

• Send POST to https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/login
  • Include basic Auth Header with Admin credentials
• Get access_token and refresh_token from response

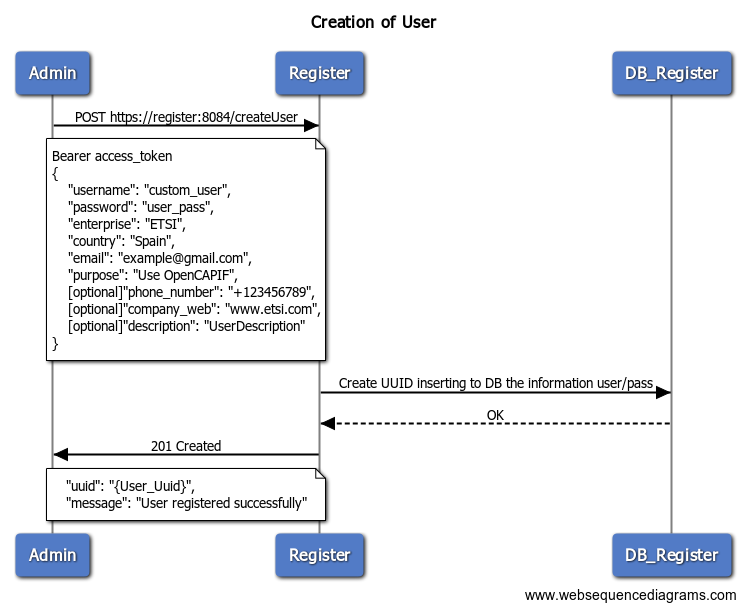

2. Create User:

• Send POST to https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/createUser
  • Include Admin access_token in Authorization Bearer Header
  • Body user_registration_body

User Retrieve access token and other information

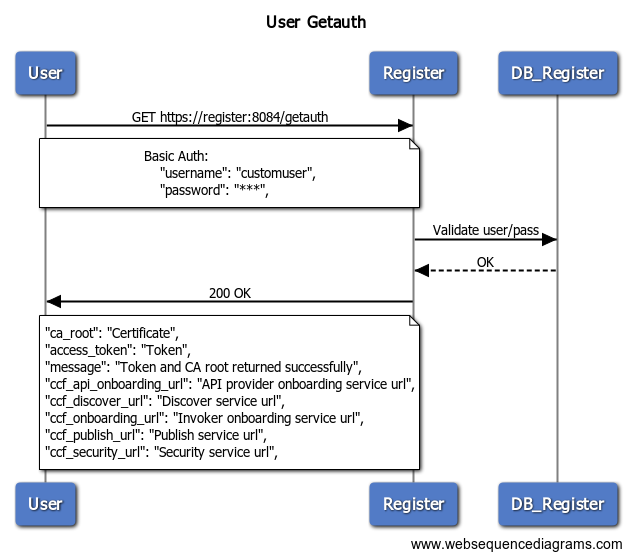

1. Retrieve access_token by User:

• Send GET to https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/getauth
  • Include basic Auth Header with User credentials
• Retrieve access_token and the urls needed for next requests from response body user_getauth_response_body_example

Onboard an Invoker

Steps to perform operation

Preconditions: The administrator must have previously registered the User.

1. Create public and private key at invoker
2. Retrieve access_token by User:

* Send **GET** to **https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/getauth**
  * Include basic Auth Header with Admin user/password
* Retrieve **access_token** and the urls needed for next requests from response body [user_getauth_response_body_example]

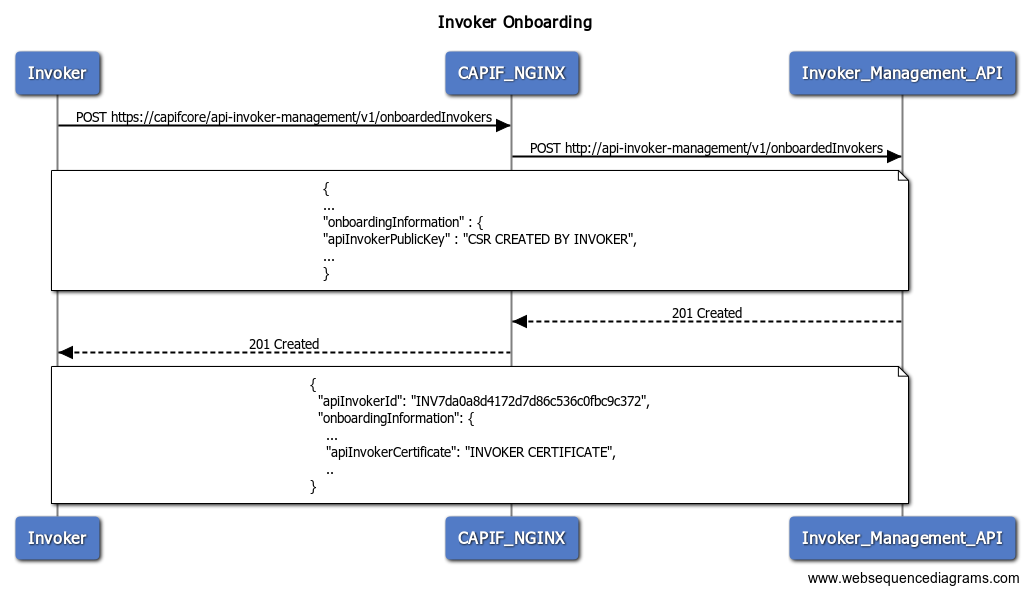

3. Onboard Invoker:

 * Send **POST** to **https://{CAPIF_HOSTNAME}/api-invoker-management/v1/onboardedInvokers**
 * Reference Request Body: [invoker onboarding body]
 * "onboardingInformation"->"apiInvokerPublicKey": must contain public key generated by Invoker.
 * Send in Authorization Header the Bearer access_token obtained previously (Authorization:Bearer ${access_token})

Checks to ensure onboarding

2. Response to Get Auth:

   1. 200 OK
   2. access_token returned.

3. Response to Onboard request must accomplish:

   1. 201 Created
   2. Response Body must follow APIInvokerEnrolmentDetails data structure with:
      • apiInvokerId
      • onboardingInformation->apiInvokerCertificate must contain the public key signed.
   3. Response Header Location must be received with URI to new resource created, following this structure: {apiRoot}/api-invoker-management/{apiVersion}/onboardedInvokers/{onboardingId}

Example Flow

Register a Provider

Steps to Perform operation

1. Create public and private key at provider for provider itself and each function (apf, aef and amf)
2. Retrieve access_token by User:

* Send **GET** to **https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/getauth**
  * Include basic Auth Header with Admin user/password
* Retrieve **access_token** and the urls needed for next requests from response body [user_getauth_response_body_example]

3. Register Provider:

   • Send POST https://{CAPIF_HOSTNAME}/api-provider-management/v1/registrations
   • body provider request body
   • Send in Authorization Header the Bearer access_token obtained previously (Authorization:Bearer ${access_token})
   • Store each cert in a file with according name.

Checks to ensure provider registration

1. Response to Register:

   1. 201 Created

2. Response to Get Auth:

   1. 200 OK
   2. access_token returned.

3. Register Provider at Provider Management:

   1. 201 Created response.
   2. body returned must accomplish APIProviderEnrolmentDetails data structure.
   3. For each apiProvFuncs, we must check:
      1. apiProvFuncId is set
      2. apiProvCert under regInfo is set properly
   4. Location Header must contain the new resource URL {apiRoot}/api-provider-management/v1/registrations/{registrationId}

Example Flow
