+# Examples of Rules
+
+
+The following images provide some examples of rules.
+
+### Define variables according to cases
+
+In the following example we :
+
+* define a String variable.
+* Then according to the Area of Service selected from the Service Order of the Service Specification we need to define it properly.
+* We output the value to the OSOM Log
+* Define dynamically the value of another parameter (This is fictional) and then do some other condition check
+
+The strAreaCodes could be passed then e.g. to NFVO for instantiation of services to these cells.
+
+
+[![lcmrules](./images/lcm/lcmfig9.png)](./images/lcm/lcmfig9.png)
+
+
+
+

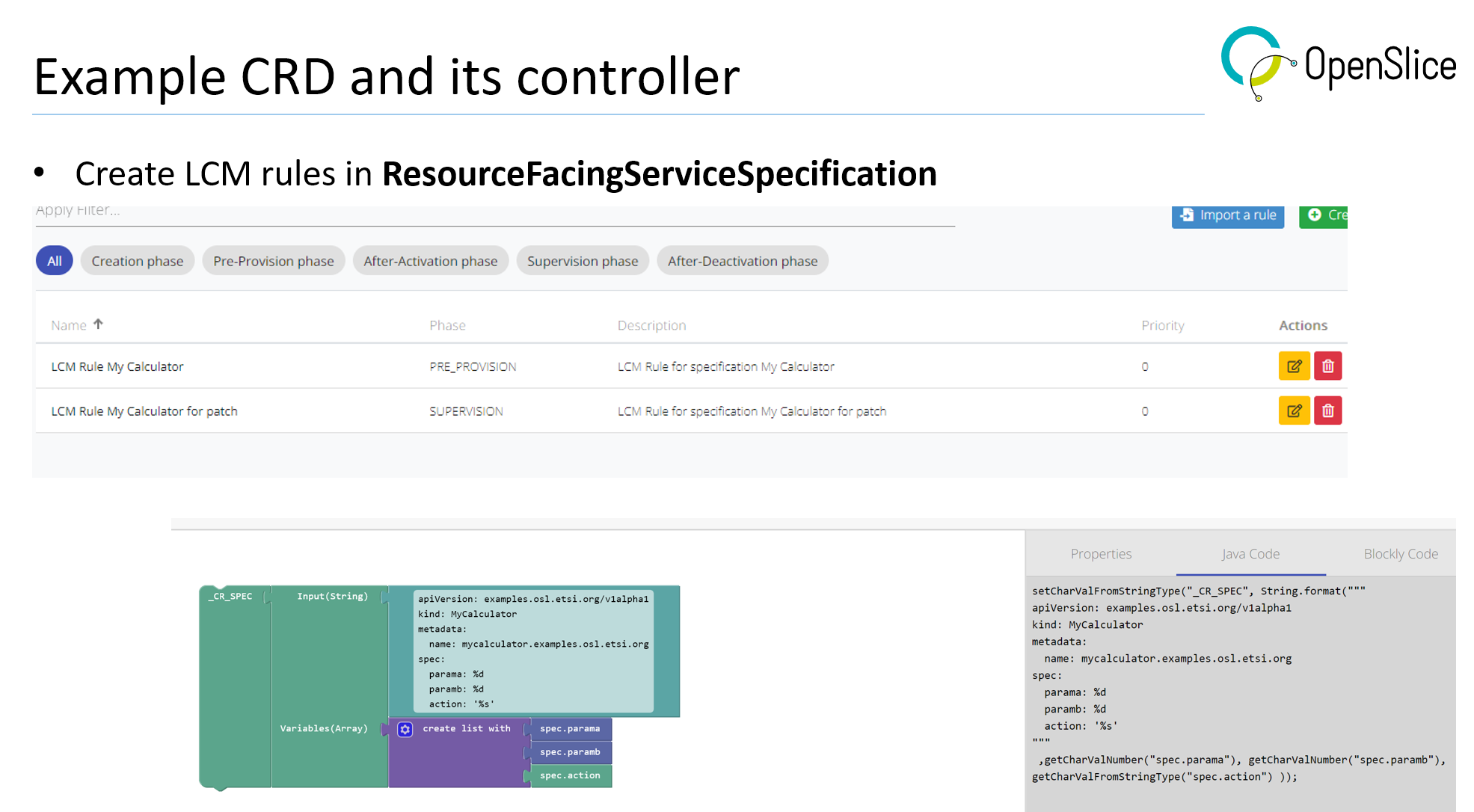

+### Define Rules to create a resource for a Kubernetes Operator
+
+* Modify the _CR_SPEC characteristic
+* Add an "Input with variables block"
+* Add a multiline Text block
+* Mark with %s, %d, etc the parameters to modify with some action
+* Add a list with the variables and their values
+
+in the example we modify a YAML spec with parama, paramb, action values from the characteristics spec.parama, spec.paramb, spec.action
+
+[![lcmrules](./images/lcm/lcmfig15.png)](./images/lcm/lcmfig15.png)
+
+
+### Define complex OSM configs for DAY 0
+
+The following displays some complex examples for defining the parameters to pass to the NFV. In this case is OSM.
+
+* NOTE: The OSM_CONFIG characteristic of a service is the one that it is used in orchestration to instantiate NS from OSM
+
+* check the variable strTargetsParam. It is passed to the variable strOsmConfig3 which is executed if the Number of Cameras is more than 100.
+* if the Video quality requested is 3, then the Maximum Namber of camers will be 8. Check the OSM detailed configuration block and its syntax.
+* if the Video quality requested is 2, we use a simpler OSM Config block to configure the parameter OSM_CONFIG. We just injected a json text ( watch the Escape of the string for the Quotes!)
+* if the Video quality requested is 1, again we use a simpler OSM Config block to configure the parameter OSM_CONFIG. We use as injected json text a variable constructed later
+
+
+[![lcmrules](./images/lcm/lcmfig10.png)](./images/lcm/lcmfig10.png)
+
+
+### Define and instantiate different services according to Service Order request
+
+In the following example we would like to offer a service either as Platinum, Gold or Silver. Depending on the selection we need to instantiate different services.
+
+There are different ways to accomplish this:
+
+* create dynamically New Service Orders of RFSs with equivalent quality of Services
+* change for example the VIMs that you deploy the NS
+* change the NSD (that is use different VNFs)
+
+The following image displays for example the latter case.
+
+[![lcmrules](./images/lcm/lcmfig11.png)](./images/lcm/lcmfig11.png)
+
+
+### Call an external RESTful service
+
+This is useful in cases for example of alarms , external logging, calling other services e.g. email or even a complex algorithm written in other language e.g. call an external service and get a result. (service e.g. a Python service)
+
+
+[![lcmrules](./images/lcm/lcmfig12.png)](./images/lcm/lcmfig12.png)
+
+[![lcmrules](./images/lcm/lcmfig13.png)](./images/lcm/lcmfig13.png)
+
+### Create New Service Orders
+
+The following example calls to Order a New Service Specification with specific Parameter Values
+
+[![lcmrules](./images/lcm/lcmfig14.png)](./images/lcm/lcmfig14.png)
