Example group SAML and SCIM configurations (PREMIUM SAAS)

These are notes and screenshots regarding Group SAML and SCIM that the GitLab Support Team sometimes uses while troubleshooting, but which do not fit into the official documentation. GitLab is making this public, so that anyone can make use of the Support team's collected knowledge.

Refer to the GitLab Group SAML documentation for information on the feature and how to set it up.

When troubleshooting a SAML configuration, GitLab team members will frequently start with the SAML troubleshooting section.

They may then set up a test configuration of the desired identity provider. We include example screenshots in this section.

SAML and SCIM screenshots

This section includes relevant screenshots of the following example configurations of Group SAML and Group SCIM:

WARNING: These screenshots are updated only as needed by GitLab Support. They are not official documentation.

If you are currently having an issue with GitLab, you may want to check your support options.

Azure Active Directory

This section has screenshots for the elements of Azure Active Directory configuration.

Basic SAML app configuration

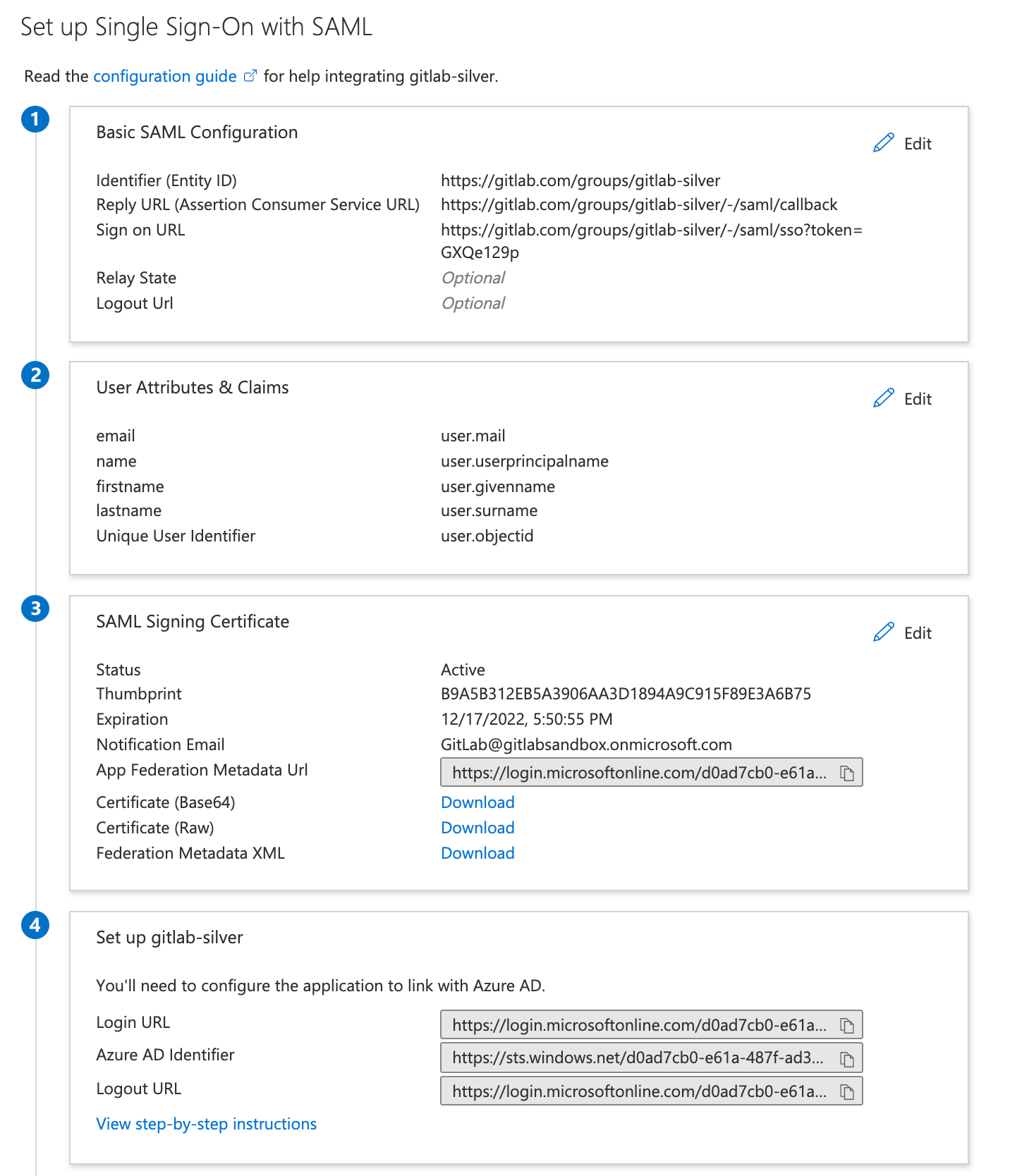

Azure AD basic SAML

User claims and attributes

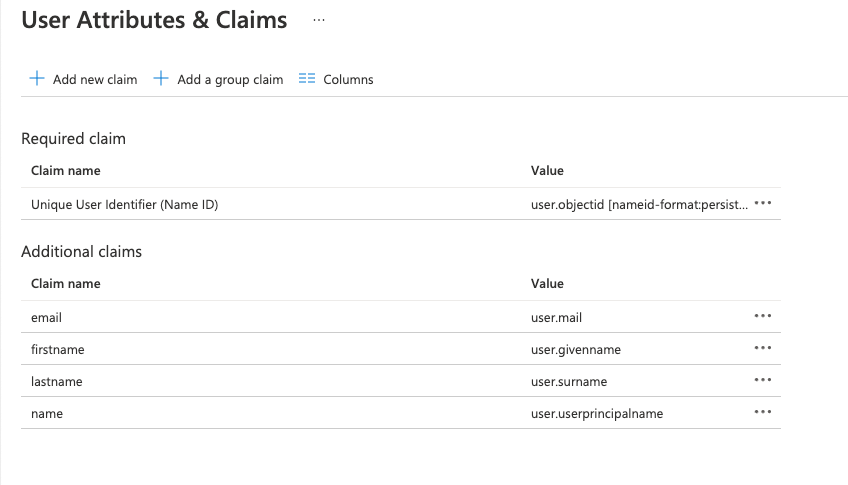

Azure AD user claims

SCIM mapping

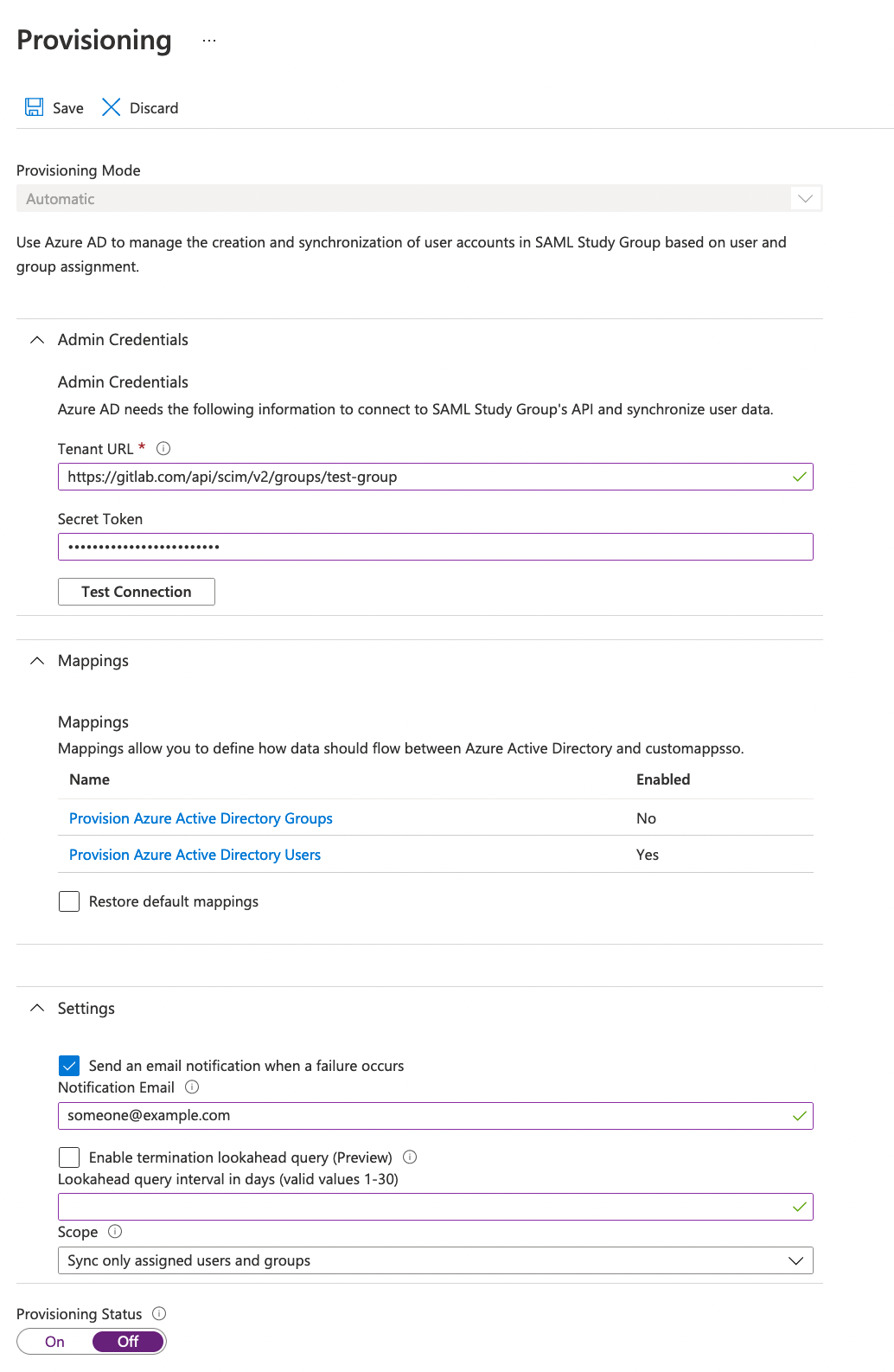

Provisioning:

Azure AD SCIM Provisioning

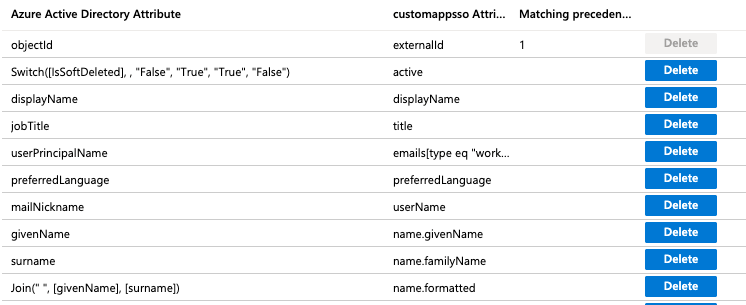

Attribute mapping:

Azure AD SCIM Attribute Mapping

Group Sync

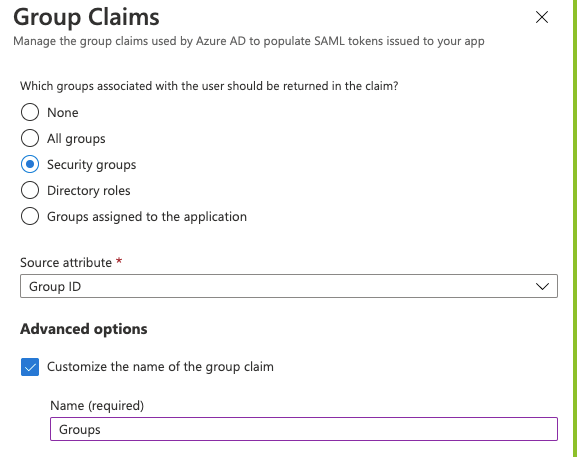

Azure Group Claims

NOTE: Using the Group ID source attribute requires users to enter the group ID or object ID when configuring SAML group links. If available, use the sAMAccountName source attribute for the friendly group name instead.

Azure AD limits the number of groups that can be sent in a SAML response to 150. If a user is a member of more than 150 groups, Azure does not include that user's group claim in the SAML response.

Google Workspace

Basic SAML app configuration:

Google Workspace basic SAML

User claims and attributes:

Google Workspace user claims

IdP links and certificate:

NOTE: Google Workspace displays a SHA256 fingerprint. To retrieve the SHA1 fingerprint required by GitLab for configuring SAML, download the certificate and calculate the SHA1 certificate fingerprint.

Google Workspace Links and Certificate

Okta

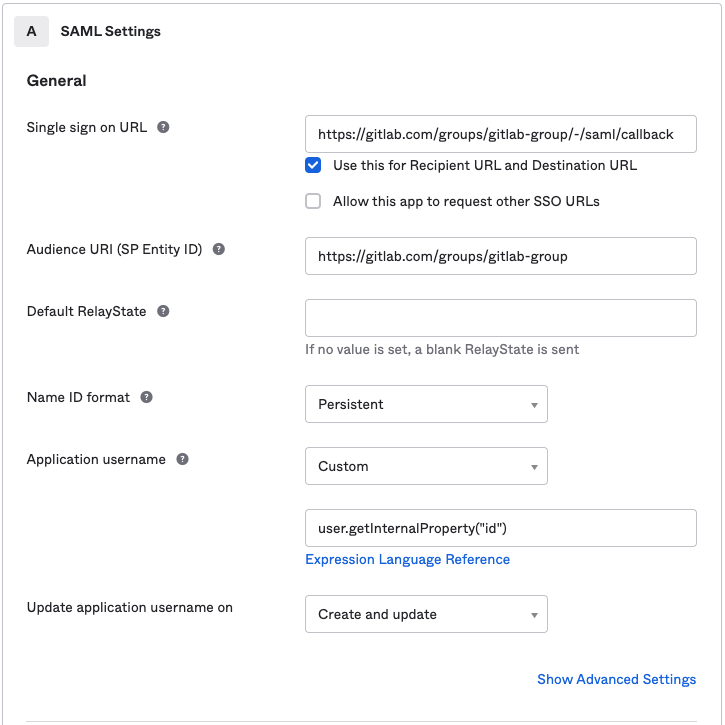

Basic SAML app configuration for GitLab.com groups:

Okta basic SAML

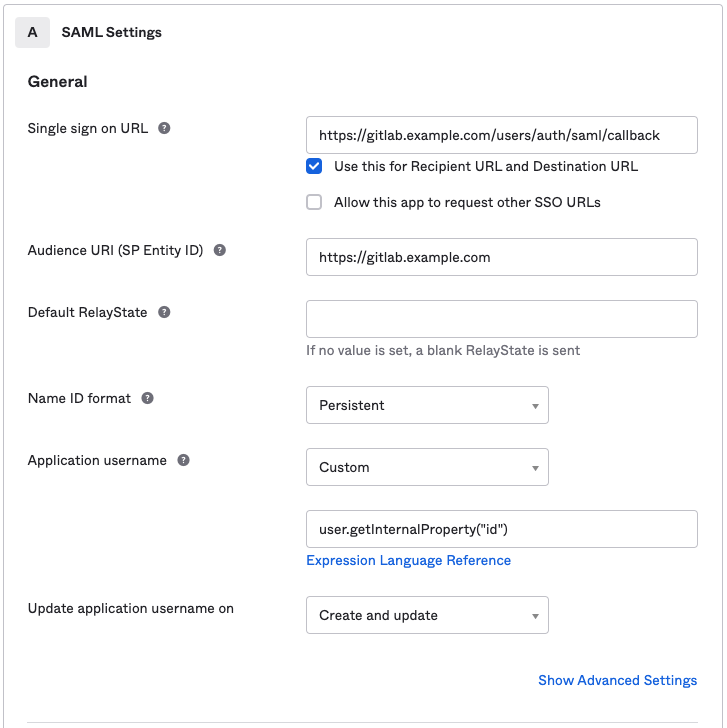

Basic SAML app configuration for GitLab self-managed:

Okta admin panel view

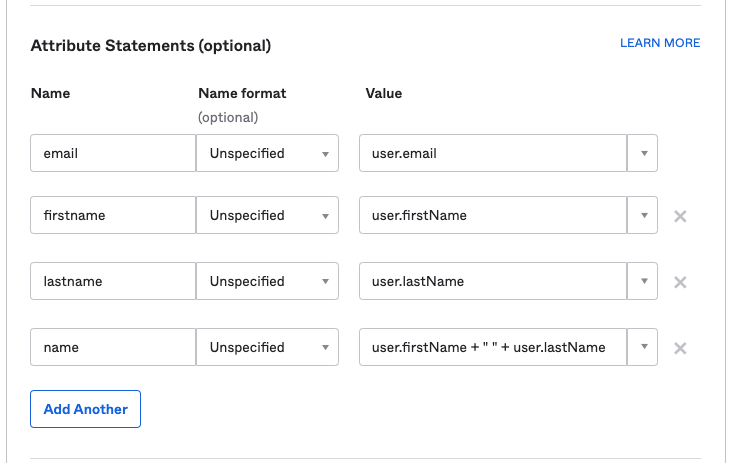

User claims and attributes:

Okta Attributes

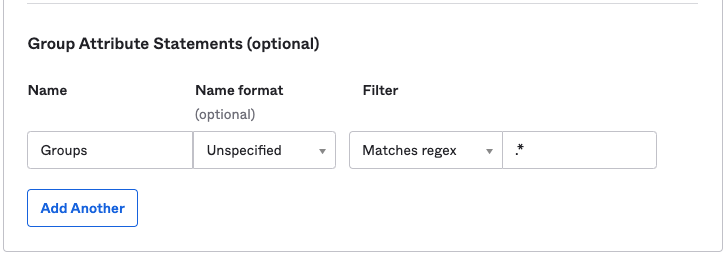

Groups attribute:

Okta Group attribute

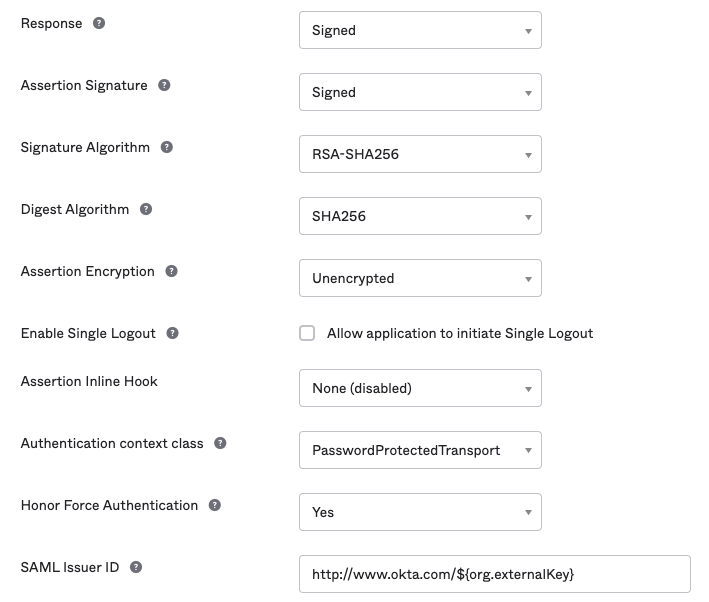

Advanced SAML app settings (defaults):

Okta Advanced Settings

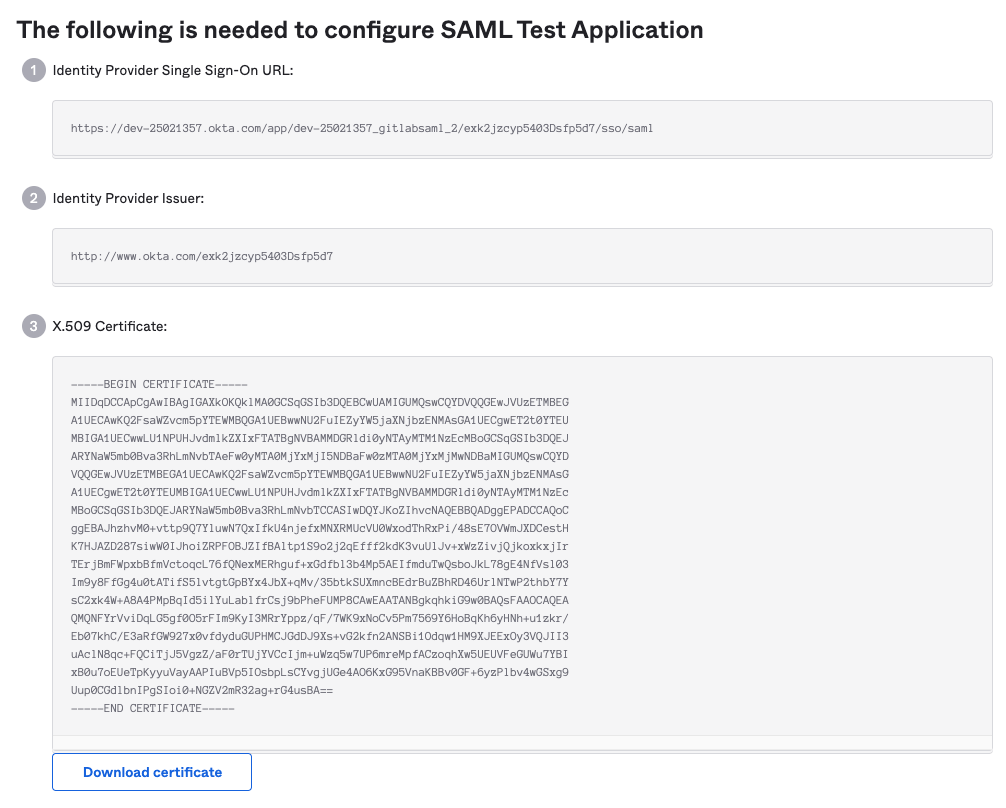

IdP Links and Certificate:

Okta Links and Certificate

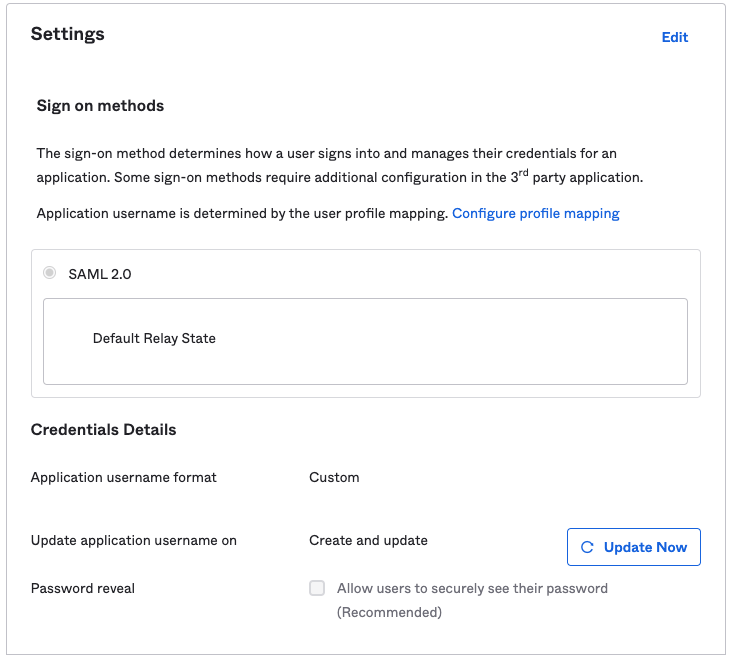

Sign on settings:

Okta SAML settings

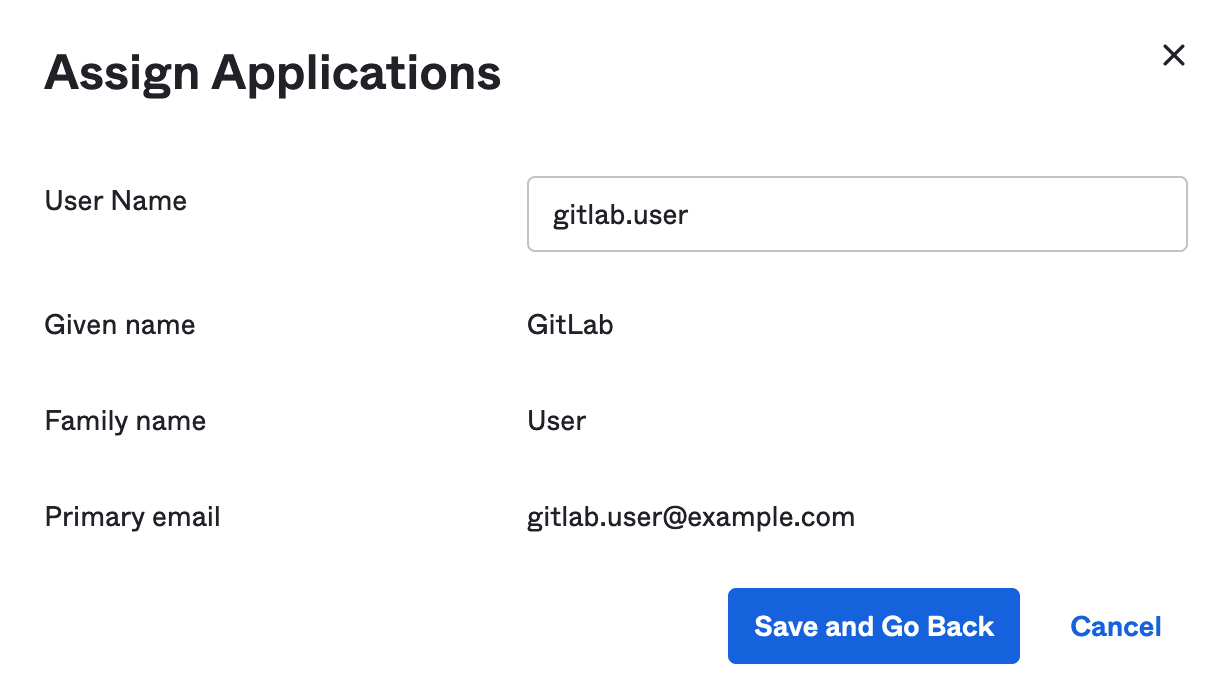

Setting the username for the newly provisioned users when assigning them the SCIM app:

Assigning SCIM app to users on Okta

OneLogin

Application details:

OneLogin application details

Parameters:

OneLogin application details

Adding a user:

OneLogin user add

SSO settings:

OneLogin SSO settings

SAML response example

When a user signs in using SAML, GitLab receives a SAML response. The SAML response can be found in production.log logs as a base64-encoded message. Locate the response by searching for SAMLResponse. The decoded SAML response is in XML format. For example:

<?xml version="1.0" encoding="UTF-8"?>
<saml2p:Response xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol" xmlns:xs="http://www.w3.org/2001/XMLSchema" Destination="https://gitlabexample/-/saml/callback" ID="id4898983630840142426821432" InResponseTo="_c65e4c88-9425-4472-b42c-37f4186ac0ee" IssueInstant="2022-05-30T21:30:35.696Z" Version="2.0">
 <saml2:Issuer xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion" Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity">http://www.okta.com/exk2y6j57o1Pdr2lI8qh7</saml2:Issuer>
 <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
   <ds:SignedInfo>
     <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
     <ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
     <ds:Reference URI="#id4898983630840142426821432">
       <ds:Transforms>
         <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
         <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#">
           <ec:InclusiveNamespaces xmlns:ec="http://www.w3.org/2001/10/xml-exc-c14n#" PrefixList="xs"/>
         </ds:Transform>
       </ds:Transforms>
       <ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
       <ds:DigestValue>neiQvv9d3OgS4GZW8Nptp4JhjpKs3GCefibn+vmRgk4=</ds:DigestValue>
     </ds:Reference>
   </ds:SignedInfo>
   <ds:SignatureValue>dMsQX8ivi...HMuKGhyLRvabGU6CuPrf7==</ds:SignatureValue>
   <ds:KeyInfo>
     <ds:X509Data>
       <ds:X509Certificate>MIIDq...cptGr3vN9TQ==</ds:X509Certificate>
     </ds:X509Data>
   </ds:KeyInfo>
 </ds:Signature>
 <saml2p:Status xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol">
   <saml2p:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success"/>
 </saml2p:Status>
 <saml2:Assertion xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion" xmlns:xs="http://www.w3.org/2001/XMLSchema" ID="id489" IssueInstant="2022-05-30T21:30:35.696Z" Version="2.0">
   <saml2:Issuer xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion" Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity">http://www.okta.com/exk2y6j57o1Pdr2lI8qh7</saml2:Issuer>
   <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
     <ds:SignedInfo>
       <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
       <ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
       <ds:Reference URI="#id48989836309833801859473359">
         <ds:Transforms>
           <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
           <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#">
             <ec:InclusiveNamespaces xmlns:ec="http://www.w3.org/2001/10/xml-exc-c14n#" PrefixList="xs"/>
           </ds:Transform>
         </ds:Transforms>
         <ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
         <ds:DigestValue>MaIsoi8hbT9gsi/mNZsz449mUuAcuEWY0q3bc4asOQs=</ds:DigestValue>
       </ds:Reference>
     </ds:SignedInfo>
     <ds:SignatureValue>dMsQX8ivi...HMuKGhyLRvabGU6CuPrf7==<</ds:SignatureValue>
     <ds:KeyInfo>
       <ds:X509Data>
         <ds:X509Certificate>MIIDq...cptGr3vN9TQ==</ds:X509Certificate>
       </ds:X509Data>
     </ds:KeyInfo>
   </ds:Signature>
   <saml2:Subject xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
     <saml2:NameID Format="urn:oasis:names:tc:SAML:2.0:nameid-format:persistent">useremail@domain.com</saml2:NameID>
     <saml2:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer">
       <saml2:SubjectConfirmationData InResponseTo="_c65e4c88-9425-4472-b42c-37f4186ac0ee" NotOnOrAfter="2022-05-30T21:35:35.696Z" Recipient="https://gitlab.example.com/-/saml/callback"/>
     </saml2:SubjectConfirmation>
   </saml2:Subject>
   <saml2:Conditions xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion" NotBefore="2022-05-30T21:25:35.696Z" NotOnOrAfter="2022-05-30T21:35:35.696Z">
     <saml2:AudienceRestriction>
       <saml2:Audience>https://gitlab.example.com/</saml2:Audience>
     </saml2:AudienceRestriction>
   </saml2:Conditions>
   <saml2:AuthnStatement xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion" AuthnInstant="2022-05-30T21:30:35.696Z" SessionIndex="_c65e4c88-9425-4472-b42c-37f4186ac0ee">
     <saml2:AuthnContext>
       <saml2:AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport</saml2:AuthnContextClassRef>
     </saml2:AuthnContext>
   </saml2:AuthnStatement>
   <saml2:AttributeStatement xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
     <saml2:Attribute Name="email" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
       <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">useremail@domain.com</saml2:AttributeValue>
     </saml2:Attribute>
     <saml2:Attribute Name="firtname" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
       <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">John</saml2:AttributeValue>
     </saml2:Attribute>
     <saml2:Attribute Name="lastname" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
       <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">Doe</saml2:AttributeValue>
     </saml2:Attribute>
     <saml2:Attribute Name="Groups" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
       <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">Super-awesome-group</saml2:AttributeValue>
     </saml2:Attribute>
   </saml2:AttributeStatement>
 </saml2:Assertion>
</saml2p:Response>
