Using GitLab CI/CD with a Bitbucket Cloud repository (PREMIUM)

GitLab CI/CD can be used with Bitbucket Cloud by:

  1. Creating a CI/CD project.
  2. Connecting your Git repository via URL.

To use GitLab CI/CD with a Bitbucket Cloud repository:

  1. In GitLab, create a project:

    1. In GitLab, on the top bar, select Main menu > Projects > View all projects.
    2. On the right of the page, select New project.
    3. Select Run CI/CD for external repository.
    4. Select Repository by URL.
    5. Fill in the fields with information from the repository in Bitbucket:
      • For Git repository URL, use the URL from the Clone this repository panel in Bitbucket.
      • Leave the username blank.
      • You can generate and use a Bitbucket App Password for the password field.

    GitLab imports the repository and enables Pull Mirroring. You can check that mirroring is working in the project in Settings > Repository > Mirroring repositories.

  2. In GitLab, create a Personal Access Token with api scope. The token is used to authenticate requests from the web hook that is created in Bitbucket to notify GitLab of new commits.

  3. In Bitbucket, from Settings > Webhooks, create a new web hook to notify GitLab of new commits.

    The web hook URL should be set to the GitLab API to trigger pull mirroring, using the Personal Access Token we just generated for authentication.

    https://gitlab.com/api/v4/projects/<PROJECT_ID>/mirror/pull?private_token=<PERSONAL_ACCESS_TOKEN>

    The web hook Trigger should be set to 'Repository Push'.

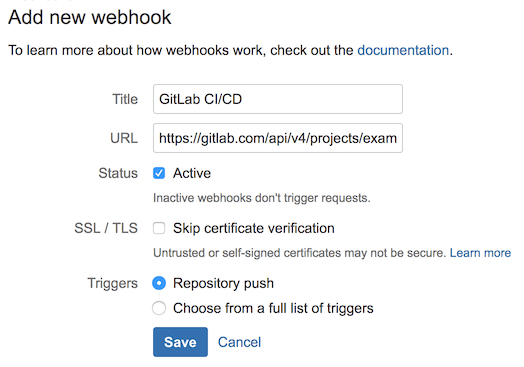

    Bitbucket Cloud webhook

    After saving, test the web hook by pushing a change to your Bitbucket repository.

  4. In Bitbucket, create an App Password from Bitbucket Settings > App Passwords to authenticate the build status script setting commit build statuses in Bitbucket. Repository write permissions are required.

    Bitbucket Cloud webhook

  5. In GitLab, from Settings > CI/CD > Variables, add variables to allow communication with Bitbucket via the Bitbucket API:

    • BITBUCKET_ACCESS_TOKEN: The Bitbucket app password created above. This variable should be masked.
    • BITBUCKET_USERNAME: The username of the Bitbucket account.
    • BITBUCKET_NAMESPACE: Set this variable if your GitLab and Bitbucket namespaces differ.
    • BITBUCKET_REPOSITORY: Set this variable if your GitLab and Bitbucket project names differ.
  6. In Bitbucket, add a script that pushes the pipeline status to Bitbucket. The script is created in Bitbucket, but the mirroring process copies it to the GitLab mirror. The GitLab CI/CD pipeline runs the script, and pushes the status back to Bitbucket.

    Create a file build_status and insert the script below and run chmod +x build_status in your terminal to make the script executable.

    #!/usr/bin/env bash

    # Push GitLab CI/CD build status to Bitbucket Cloud

    if [ -z "$BITBUCKET_ACCESS_TOKEN" ]; then
       echo "ERROR: BITBUCKET_ACCESS_TOKEN is not set"
    exit 1
    fi
    if [ -z "$BITBUCKET_USERNAME" ]; then
        echo "ERROR: BITBUCKET_USERNAME is not set"
    exit 1
    fi
    if [ -z "$BITBUCKET_NAMESPACE" ]; then
        echo "Setting BITBUCKET_NAMESPACE to $CI_PROJECT_NAMESPACE"
        BITBUCKET_NAMESPACE=$CI_PROJECT_NAMESPACE
    fi
    if [ -z "$BITBUCKET_REPOSITORY" ]; then
        echo "Setting BITBUCKET_REPOSITORY to $CI_PROJECT_NAME"
        BITBUCKET_REPOSITORY=$CI_PROJECT_NAME
    fi

    BITBUCKET_API_ROOT="https://api.bitbucket.org/2.0"
    BITBUCKET_STATUS_API="$BITBUCKET_API_ROOT/repositories/$BITBUCKET_NAMESPACE/$BITBUCKET_REPOSITORY/commit/$CI_COMMIT_SHA/statuses/build"
    BITBUCKET_KEY="ci/gitlab-ci/$CI_JOB_NAME"

    case "$BUILD_STATUS" in
    running)
       BITBUCKET_STATE="INPROGRESS"
       BITBUCKET_DESCRIPTION="The build is running!"
       ;;
    passed)
       BITBUCKET_STATE="SUCCESSFUL"
       BITBUCKET_DESCRIPTION="The build passed!"
       ;;
    failed)
       BITBUCKET_STATE="FAILED"
       BITBUCKET_DESCRIPTION="The build failed."
       ;;
    esac

    echo "Pushing status to $BITBUCKET_STATUS_API..."
    curl --request POST "$BITBUCKET_STATUS_API" \
    --user $BITBUCKET_USERNAME:$BITBUCKET_ACCESS_TOKEN \
    --header "Content-Type:application/json" \
    --silent \
    --data "{ \"state\": \"$BITBUCKET_STATE\", \"key\": \"$BITBUCKET_KEY\", \"description\":
    \"$BITBUCKET_DESCRIPTION\",\"url\": \"$CI_PROJECT_URL/-/jobs/$CI_JOB_ID\" }"
  7. In Bitbucket, create a .gitlab-ci.yml file to use the script to push pipeline success and failures to Bitbucket. Similar to the script added above, this file is copied to the GitLab repository as part of the mirroring process.

    stages:
      - test
      - ci_status

    unit-tests:
      script:
        - echo "Success. Add your tests!"

    success:
      stage: ci_status
      before_script:
        - ""
      after_script:
        - ""
      script:
        - BUILD_STATUS=passed BUILD_KEY=push ./build_status
      when: on_success

    failure:
      stage: ci_status
      before_script:
        - ""
      after_script:
        - ""
      script:
        - BUILD_STATUS=failed BUILD_KEY=push ./build_status
      when: on_failure

GitLab is now configured to mirror changes from Bitbucket, run CI/CD pipelines configured in .gitlab-ci.yml and push the status to Bitbucket.
