# Common Operations

## Register new user

In order to use OpenCAPIF we must add a new user. This new user can onboard/register any Invokers or Providers.

That new user **must be created by administrator** of Register Service and with the credentials shared by administrator, the new user can get the **access_token** by requesting it to Register service.

The steps to register a new user at Register Service are:

### Admin create User

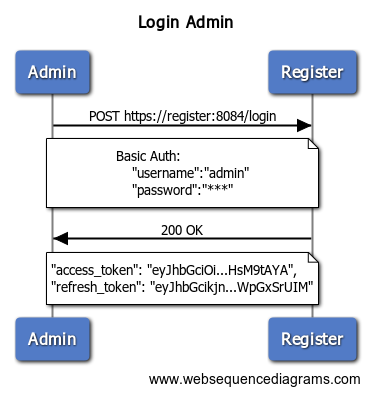

1) **Login as Admin to get access_token:**

  * Send **POST** to **https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/login**
    * **Include basic Auth Header with Admin credentials**
  * Get **access_token** and **refresh_token** from response

![Flow](../../../images/flows/01_Login_Admin.png)

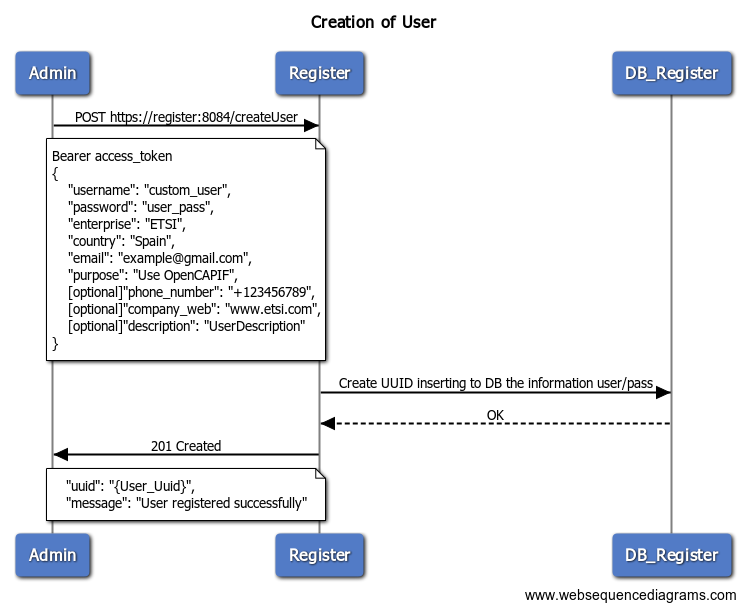

2) **Create User:**

  * Send **POST** to **https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/createUser**
    * Include Admin **access_token** in **Authorization Bearer Header**
    * Body [user_registration_body]

![Flow](../../../images/flows/02_Creation_of_user.png)

### User Retrieve access token and other information

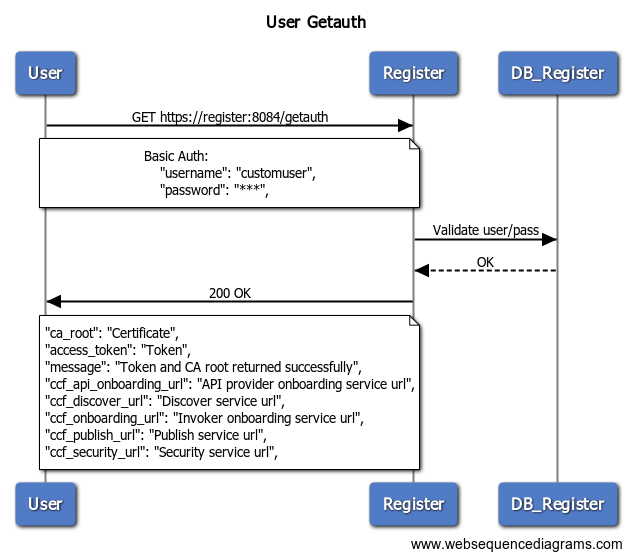

1) **Retrieve access_token by User:**

  * Send **GET** to **https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/getauth**
    * Include **basic Auth Header with User credentials**
  * Retrieve **access_token** and the urls needed for next requests from response body [user_getauth_response_body_example]

![Flow](../../../images/flows/03_Register_of_AEF_GetAuth.png)

## Onboard an Invoker

### Steps to perform operation
***Preconditions: The administrator must have previously registered the User.***

  1. Create public and private key at invoker
  2. Retrieve access_token by User:

    * Send **GET** to **https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/getauth**
      * Include basic Auth Header with Admin user/password
    * Retrieve **access_token** and the urls needed for next requests from response body [user_getauth_response_body_example]

  3.  Onboard Invoker:

     * Send **POST** to **https://{CAPIF_HOSTNAME}/api-invoker-management/v1/onboardedInvokers**
     * Reference Request Body: [invoker onboarding body]
     * "onboardingInformation"->"apiInvokerPublicKey": must contain public key generated by Invoker.
     * Send in Authorization Header the Bearer access_token obtained previously (Authorization:Bearer ${access_token})

### Checks to ensure onboarding

   2. Response to Get Auth:
      1. **200 OK**
      2. ***access_token*** returned.

   3. Response to Onboard request must accomplish:
      1. **201 Created**
      2. Response Body must follow **APIInvokerEnrolmentDetails** data structure with:
         * apiInvokerId
         * onboardingInformation->apiInvokerCertificate must contain the public key signed.
      3. Response Header **Location** must be received with URI to new resource created, following this structure: **{apiRoot}/api-invoker-management/{apiVersion}/onboardedInvokers/{onboardingId}**

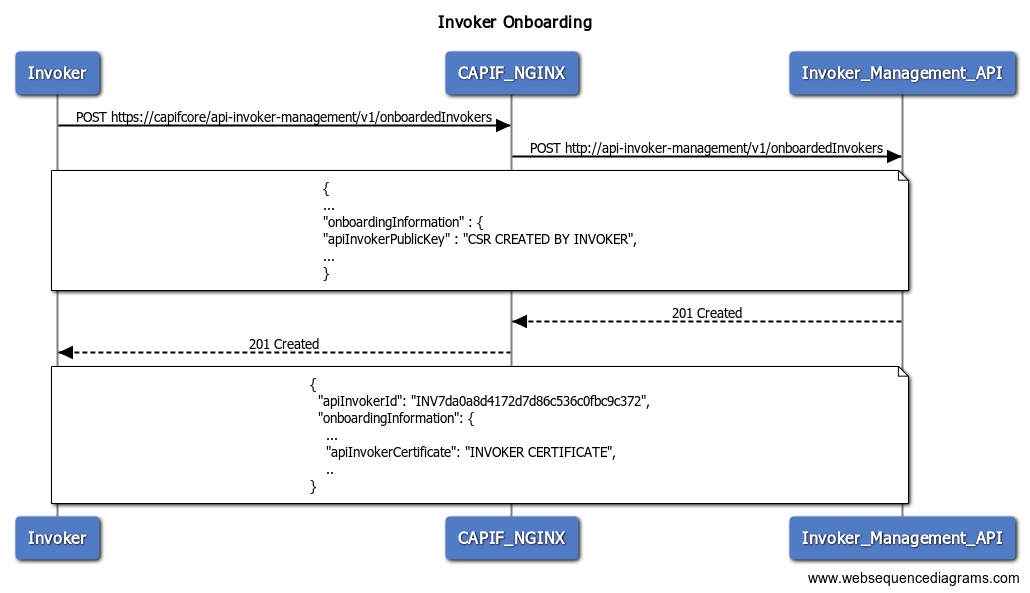

### Example Flow
![Flow](../../../images/flows/07_Invoker_Onboarding.png)

## Register a Provider

### Steps to Perform operation
  1. Create public and private key at provider for provider itself and each function (apf, aef and amf)
  2. Retrieve access_token by User:

    * Send **GET** to **https://${CAPIF_REGISTER}:${CAPIF_REGISTER_PORT}/getauth**
      * Include basic Auth Header with Admin user/password
    * Retrieve **access_token** and the urls needed for next requests from response body [user_getauth_response_body_example]

  3. Register Provider:

     * Send **POST** **https://{CAPIF_HOSTNAME}/api-provider-management/v1/registrations**
     * body [provider request body]
     * Send in Authorization Header the Bearer access_token obtained previously (Authorization:Bearer ${access_token})
     * Store each cert in a file with according name.

### Checks to ensure provider registration
   1. Response to Register:
      1. **201 Created**

   2. Response to Get Auth:
      1. **200 OK**
      2. ***access_token*** returned.

   3. Register Provider at Provider Management:
      1. **201 Created** response.
      2. body returned must accomplish **APIProviderEnrolmentDetails** data structure.
      3. For each **apiProvFuncs**, we must check:
         1. **apiProvFuncId** is set
         2. **apiProvCert** under **regInfo** is set properly
      4. Location Header must contain the new resource URL **{apiRoot}/api-provider-management/v1/registrations/{registrationId}**

### Example Flow
![Flow](../../../images/flows/07_Invoker_Onboarding.png)


[user_registration_body]: ./user_registration_body.json  "User Registration Body"
[user_getauth_response_body_example]: ./user_getauth_response_body_example.json  "User GetAuth response Body Example"

[invoker onboarding body]: ../api_invoker_management/invoker_details_post_example.json  "API Invoker Request"
[invoker getauth body]: ../api_invoker_management/invoker_getauth_example.json    "Get Auth Example"

[provider request body]: ../api_provider_management/provider_details_post_example.json  "API Provider Enrolment Request"


[Return To All Test Plans]: ../README.md
